DL-UNI20050
  • Description
  • Package contents
  • Extra

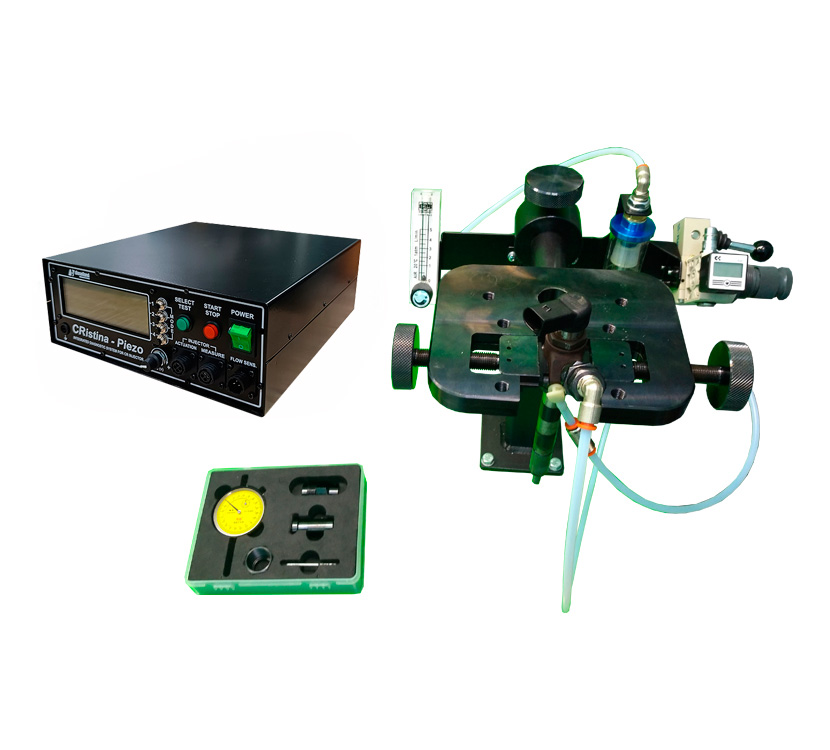

DL-UNI20050. Complete kit for repair of injectors CR Siemens VDO.

The repair kit allows for the correct and quick assembly of the CR Siemens VDO injectors.
Features of the device:

-Feeding signal to activate the injector on the hand press
-Measuring the resistance of a piezo
-Check of breakdown on the case
-Measuring the capacity of the piezo
-Measurement of the smooth running of the piezo.

DL-UNI20050. Complete kit for repair of injectors CR Siemens VDO.
Name Amount
Controller CRistina-Piezo 1 pc
The clamp-holder of injectors Piezo ST-04 1 pc
Bracket holder 1 pc
The air meter. 1 pc
The air filter 1 pc
The distributive air valve. 1 pc
Reducer for air. 1 pc
The electronic manometer. 1 pc
Set of tubes. 1 set
Quick coupling 6mm 1 pc
Set of 2 nozzles for the backflow of the Siemens VDO injectors 1 set
DL-CR50157 Set of adapters for measuring f the valve stroke of CR VDO Siemens injector 1 set

Additionally!

  • DL-UNI30545 The key for mounting / dismounting the SIEMENS injector multiplier nut
DL-UNI20051. CR Injector Siemens VDO Repair Kit (without clamp for injectors)
Name Amount
Controller CRistina-Piezo 1 pc
Bracket holder 1 pc
The air meter. 1 pc
The air filter. 1 pc
The distributive air valve. 1 pc
Reducer for air. 1 pc
The electronic manometer. 1 pc
 Set of tubes. 1 set
Quick coupling 6mm. 1 pc
Set of 2 nozzles for the backflow of the Siemens VDO injectors 1 set

Additionally!

  • DL-UNI30545.The key for mounting / dismounting the SIEMENS injector multiplier nut
  • DL-CR50157. Set of adapters for measuring the stroke of the CR VDO Siemens injector valve
DL-UNI20052. CR Siemens VDO injector repair kit (without CRistina-Piezo controller)
Name amount
The clamp-holder of injectors Piezo ST-04 1 pc
Bracket holder. 1 pc
The air meter. 1 pc
The air filter. 1 pc
The distributive air valve 1 pc
Reducer for air. 1 pc
The electronic manometer 1 pc
Set of tubes. 1 set
Quick coupling 6mm 1 pc
Set of 2 nozzles for the backflow of the Siemens VDO injectors 1 set

Additionally!

  • DL-UNI30545.The key for mounting / dismounting the SIEMENS injector multiplier nut
  • DL-CR50157. Set of adapters for measuring the stroke of the CR VDO Siemens injector valve
DL-UNI20053. CR Siemens VDO injector repair kit (without CRistina-Piezo controller and the clamp-holder of injectors Piezo ST-04 )
Name Amount
Bracket holder. 1 pc
Air meter 1 pc
Air filter 1 pc
The distributive air valve. 1 pc
Reducer for air. 1 pc
 The electronic manometer 1 pc
Set of tubes 1 set
Quick coupling 6mm. 1 pc
Set of 2 nozzles for the backflow of the Siemens VDO injectors 1 set

Additionally!

  • DL-UNI30545.The key for mounting / dismounting the SIEMENS injector multiplier nut
  • DL-CR50157. Set of adapters for measuring the stroke of the CR VDO Siemens injector valve

Optional equipment for kits DL-UNI20050, DL-UNI20051, DL-UNI20052, DL-UNI20053:

  • DL-UNI30545.The key for mounting / dismounting the SIEMENS injector multiplier nut

Optional equipment for kits DL-UNI20051, DL-UNI20052, DL-UNI20053:

  • DL-CR50157. Set of adapters for measuring the stroke of the CR VDO Siemens injector valve
